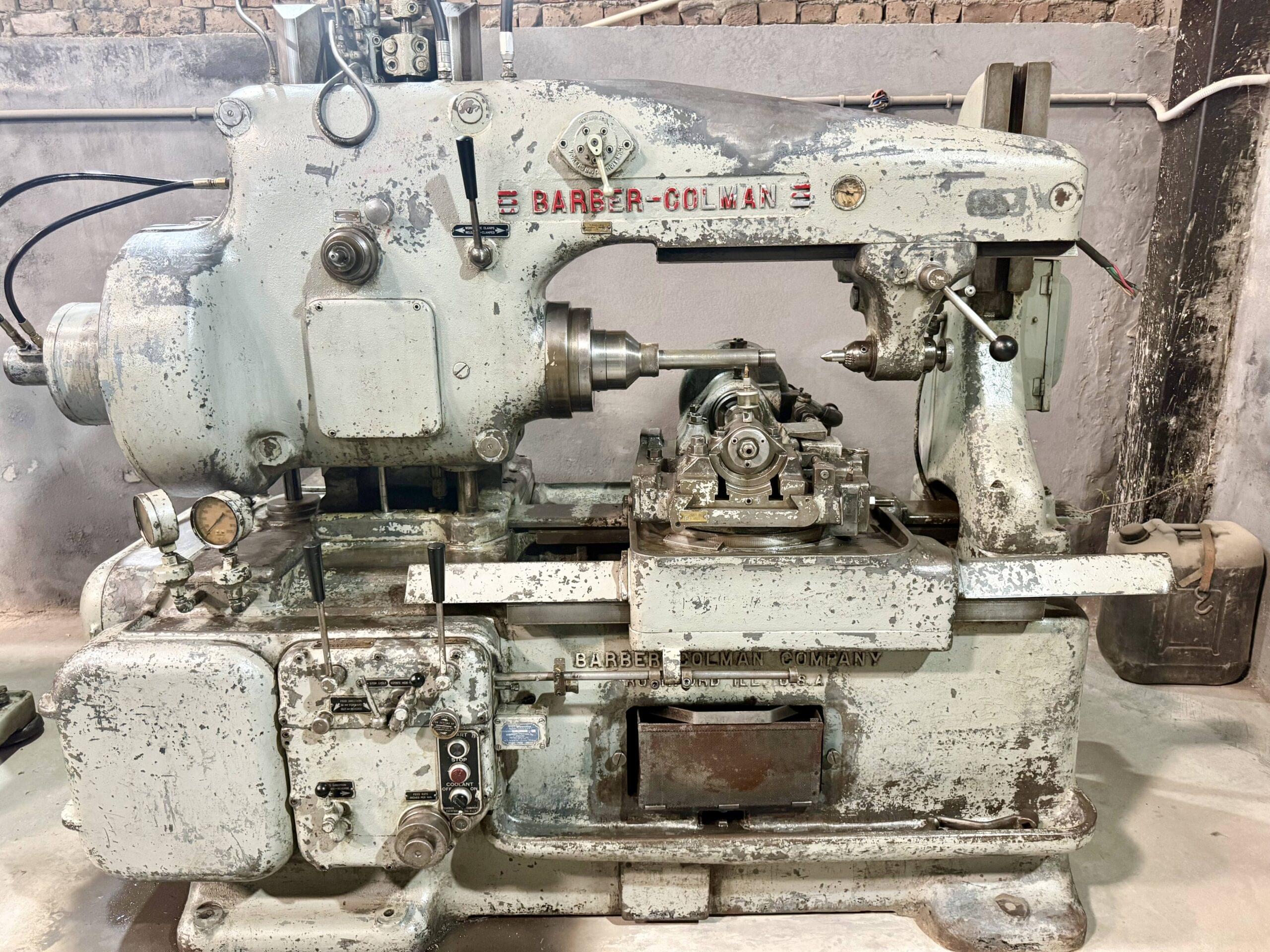

BARBER COLMAN 16-16 SPLINE HOBBING
BARBER COLMAN 16-16 SPLINE HOBBING

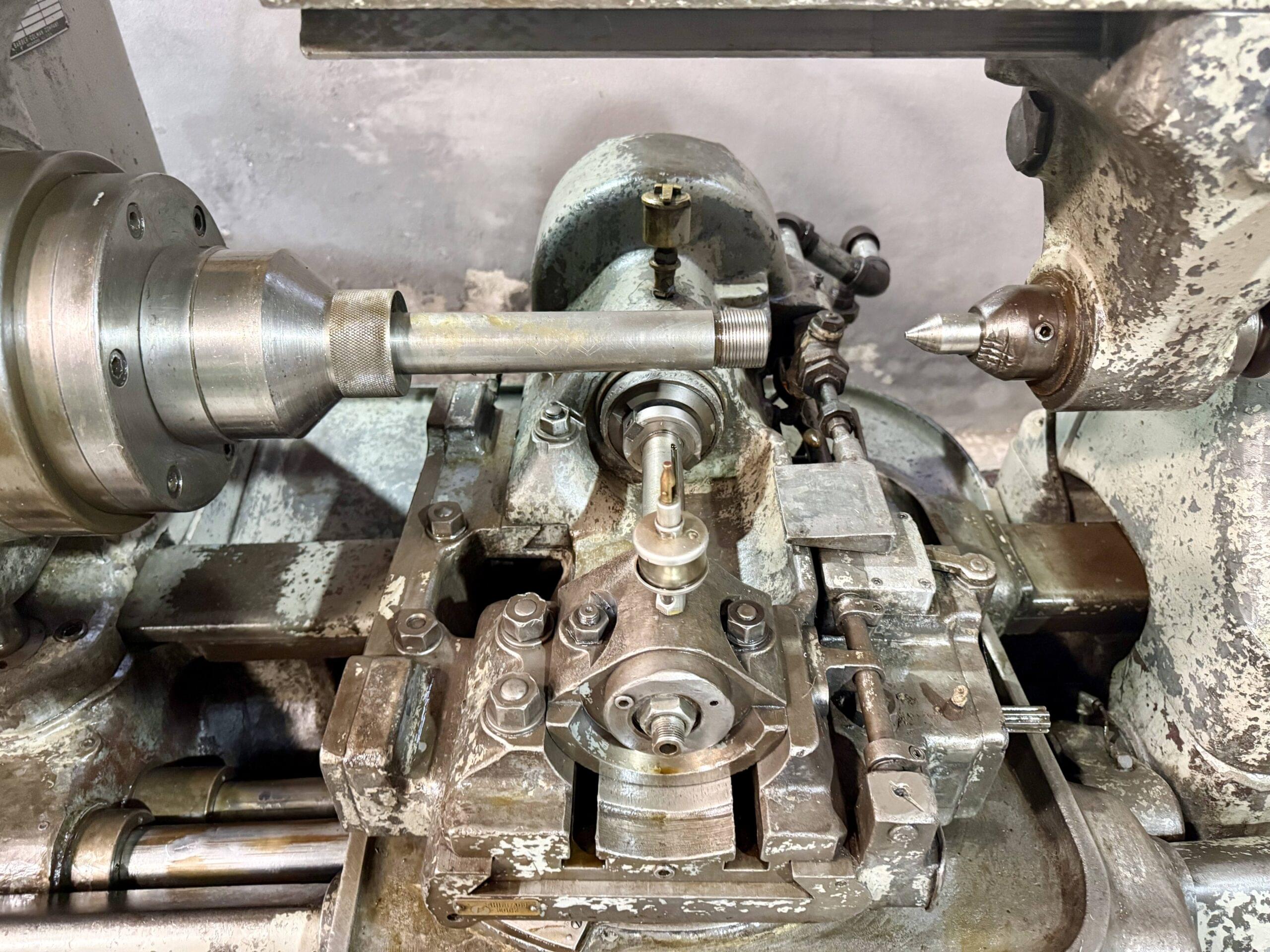

BARBER COLMAN 16-16 SPLINE HOBBING - Image 3

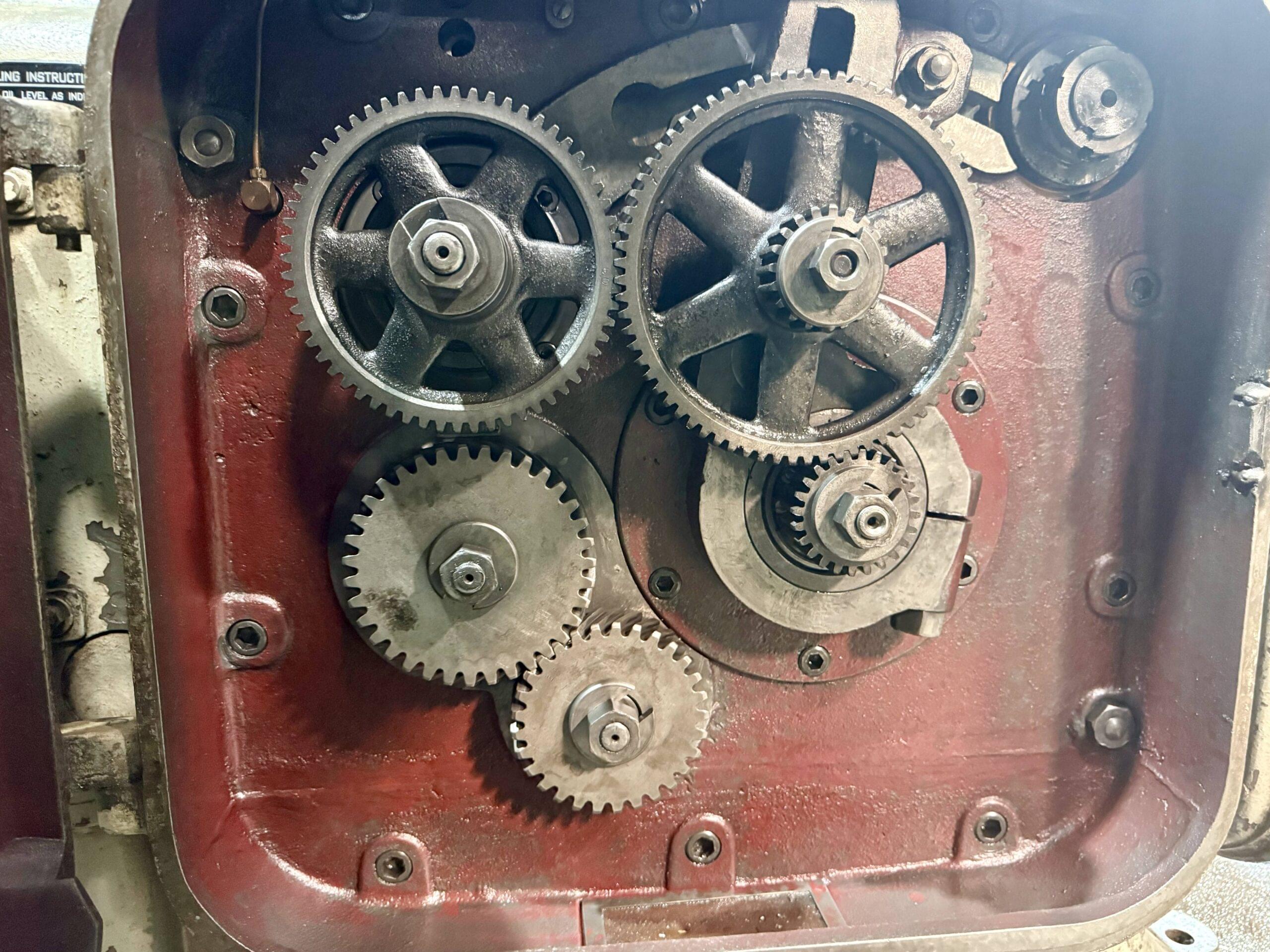

BARBER COLMAN 16-16 SPLINE HOBBING - Image 4
BARBER COLMAN 16-16 SPLINE HOBBING - Image 5
BARBER COLMAN 16-16 SPLINE HOBBING - Image 6
BARBER COLMAN 16-16 SPLINE HOBBING - Image 7

BARBER COLMAN 16-16 SPLINE HOBBING

MACHINE SPECIFICATION

Make / Brand: Barber-Colman
Model: 16-16
Machine Type: Spline & Gear Hobbing Machine

Capacity

  • Maximum Rated Work Diameter:360 mm
  • Maximum D.P. (one cut in steel):3 Module

Hob & Carriage

  • Maximum Travel of Hob Carriage:400 mm
  • Maximum Hob Diameter (Standard Hob Slide):150 mm
  • Maximum Hob Speed:360 RPM
Category:
CONTACT US FOR PRICE

Brand-Barber Colman 16-16 Spline Hobbing Machine

High-performance spline hobbing machine in excellent running condition. Handles a maximum work diameter of 360 mm with a diametral pitch up to 7.3 mod. Hob carriage travel is 400 mm, and it accommodates standard hobs up to 150 mm diameter at speeds up to 360 RPM. Comes with extensive tooling and complete operating manual. Operates smoothly and quietly, making it ideal for precision gear and spline manufacturing.
